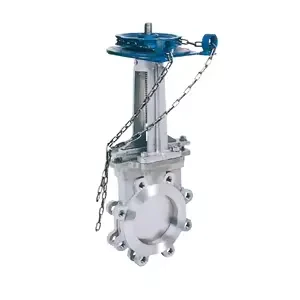

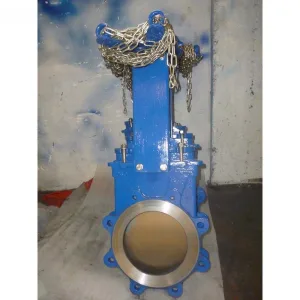

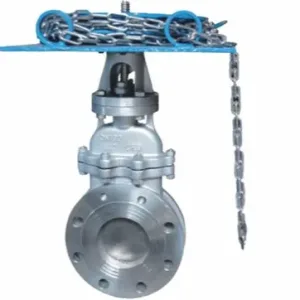

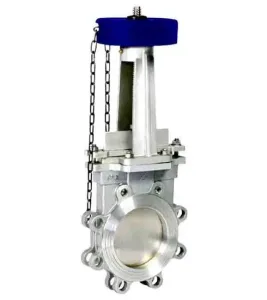

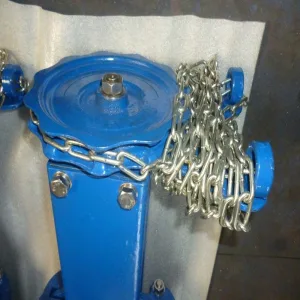

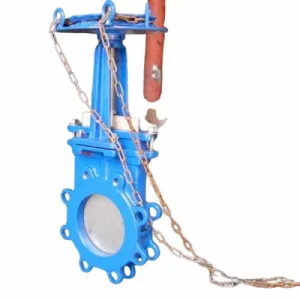

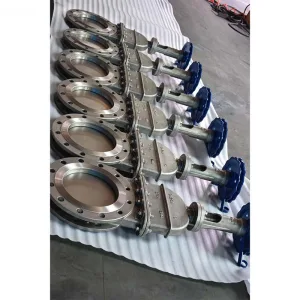

Chainwheel Knife Gate Valve

Technical Specifications of Chain wheel Knife Gate Valve
Size Range DN 50~600mm  NPS 2”-24”(Large diameter on request)
Design Options Unidirectional Seal;

Rising Stem

Body Material Carbon steel, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.
Knife Material SS304, SS304L, SS316, SS316L, SAF2205, SAF2507

or other requested

Seat Material NR:70°C  NBR:80°C    EPDM: 120°C   PTFE: 150°C

Viton/FKM: 180°C   Metal seat: SS304/316+Stellite ≥ 200°C

Applicable Standards Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Lever/Handwheel/Bevel Gear/Chainwheel

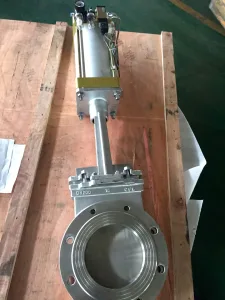

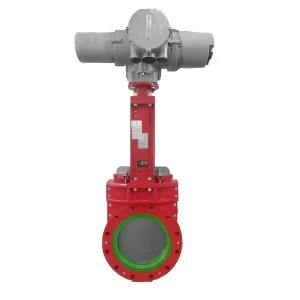

Pneumatic/Hydraulic/Electric actuator

Applications Pulp & Paper / Water & Waster Water/Mining/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food

knife gate valves are a special type of gate valve designed for rugged and reliable applications where a shutoff mechanism is required to handle thick, viscous or abrasive fluids, slurries or powders.
knife gate valves are essential for reliable shutoff of abrasive, viscous or solids-laden fluids. Their rugged construction, coupled with an effective sealing mechanism, makes them suitable for challenging environments where conventional valves may fail. Proper selection, installation and maintenance are essential to ensure optimal performance and longevity.
Durable Construction: This knife-edge gate valve is crafted from carbon steel, ensuring strong and long-lasting performance in hydraulic engineering applications.

Customization Options: Available in a variety of sizes, including customer-requested sizes, this valve can be tailored to meet specific requirements, making it an ideal choice for businesses with unique needs.

Wide Temperature Range: With an operating temperature range of -10 °C to + 200 °C, this valve can handle a wide range of applications from cryogenic to medium-temperature environments.

Compliance with International Standards: Manufactured in accordance with ISO 9001:2015 standards, this valve meets international quality standards, providing assurance for its reliability and performance.

Comprehensive Support: With OEM and ODM support available, businesses can rely on the manufacturer to provide customized solutions, ensuring the valve integrates seamlessly into their operations.

Technical Specifications of Chain wheel Knife Gate Valve
Size Range DN 50~600mm  NPS 2”-24”(Large diameter on request)
Design Options Unidirectional Seal;

Rising Stem

Body Material Carbon steel, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.
Knife Material SS304, SS304L, SS316, SS316L, SAF2205, SAF2507

or other requested

Seat Material NR:70°C  NBR:80°C    EPDM: 120°C   PTFE: 150°C

Viton/FKM: 180°C   Metal seat: SS304/316+Stellite ≥ 200°C

Applicable Standards Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Lever/Handwheel/Bevel Gear/Chainwheel

Pneumatic/Hydraulic/Electric actuator

Applications Pulp & Paper / Water & Waster Water/Mining/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food

Ceramic valves are suitable for opening and closing of pipes with high hardness particles, such as ash, slag water, pulverized coal, or soft particles but corrosive media. The sealing surface is made of high-grade toughened industrial ceramics. Its chemical stability and hardness are very high.

It has high wear resistance, corrosion resistance and erosion resistance. It also has good thermal insulation, small thermal expansion, high mechanical strength, low starting load, less ash jamming and ash deposit, and long service life Advantage.The solid valve body design can avoid valve body perforation and leakage caused by high-speed medium erosion.

Molding process Main chemical components of alumina 95 ceramics
Isostatic pressing Zr02:94.6%   Y203:4.7-5%  R0:0.4-0.7%
Performance parameters of ceramics
Volume density g/cm3 Flexural strength (Mpa) Compressive strength (Mpa) Tensile strength (Mpa) Average linear expansion coefficient
6.02g/cm 998 2100 400 10.5×10/C
Supporting valve parameters
Main material QT450, WCB, CF8, CF3M, 2205
Nominal diameter DN50-DN1000
Applicable temperatur Tem:-29~+350℃
Operation mode Manual, electric, gearbox, pneumatic, manual pneumatic, hydraulic, electro-hydraulic, sprocket, lever
Applicable medium Pulp, sewage, coal slurry, ash, particles, dust, slag water mixture

Qualification certificate

Factory view

Technical Specifications of Chain wheel Knife Gate Valve
Size Range DN 50~600mm  NPS 2”-24”(Large diameter on request)
Design Options Unidirectional Seal;

Rising Stem

Body Material Carbon steel, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.
Knife Material SS304, SS304L, SS316, SS316L, SAF2205, SAF2507

or other requested

Seat Material NR:70°C  NBR:80°C    EPDM: 120°C   PTFE: 150°C

Viton/FKM: 180°C   Metal seat: SS304/316+Stellite ≥ 200°C

Applicable Standards Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Lever/Handwheel/Bevel Gear/Chainwheel

Pneumatic/Hydraulic/Electric actuator

Applications Pulp & Paper / Water & Waster Water/Mining/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
