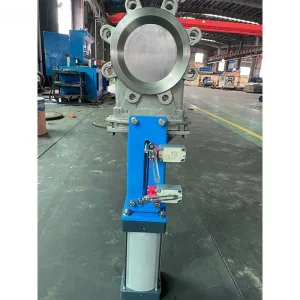

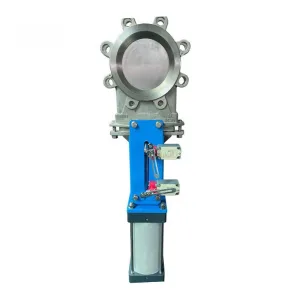

Pneumatic Slurry Knife Gate Valve

Pneumatic Rubber sleeve slurry knife gate valve is designed for one piece casting body with drop-tight seal and for different slurry applications,

which prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates.

Pneumatic Rubber sleeve slurry knife gate valve is designed for one piece casting body with drop-tight seal and for different slurry applications,

which prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates.

Pneumatic Rubber sleeve slurry knife gate valve is designed for one piece casting body with drop-tight seal and for different slurry applications,which prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates.
knife gate valves are a special type of gate valve designed for rugged and reliable applications where a shutoff mechanism is required to handle thick, viscous or abrasive fluids, slurries or powders.

knife gate valves are essential for reliable shutoff of abrasive, viscous or solids-laden fluids. Their rugged construction, coupled with an effective sealing mechanism, makes them suitable for challenging environments where conventional valves may fail. Proper selection, installation and maintenance are essential to ensure optimal performance and longevity.
Durable Construction: This knife-edge gate valve is crafted from carbon steel, ensuring strong and long-lasting performance in hydraulic engineering applications.

Customization Options: Available in a variety of sizes, including customer-requested sizes, this valve can be tailored to meet specific requirements, making it an ideal choice for businesses with unique needs.

Wide Temperature Range: With an operating temperature range of -10 °C to + 200 °C, this valve can handle a wide range of applications from cryogenic to medium-temperature environments.

Compliance with International Standards: Manufactured in accordance with ISO 9001:2015 standards, this valve meets international quality standards, providing assurance for its reliability and performance.

Comprehensive Support: With OEM and ODM support available, businesses can rely on the manufacturer to provide customized solutions, ensuring the valve integrates seamlessly into their operations.

Technical Specifications of Slurry Knife Gate Valve(One-piece body type)
Size Range DN 50~600mm  NPS 2”-24”(Large diameter on request)
Design Options 100% full-port opening;

One piece casting body type;

Abrasion resistant replaceable sleeves;

Drop-tight, bi-directional shut off;

Eliminates seat cavity which prevents slurry build up

Body Material Ductile iron GGG40/GGG50
Knife Material SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 etc.
Seat Material Nature Rubber:70°C   (other materials on request)
Applicable Standards Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, AS2129 Table “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

1. Operatio

n

Options

Hand wheel/Bevel Gear/Chain wheel

Pneumatic/Electric/Hydraulic actuator

Applications Mining/Pulp & Paper / Waste Water treatment/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food

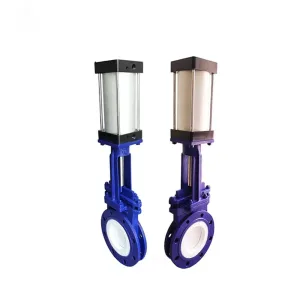

Ceramic valves are suitable for opening and closing of pipes with high hardness particles, such as ash, slag water, pulverized coal, or soft particles but corrosive media. The sealing surface is made of high-grade toughened industrial ceramics. Its chemical stability and hardness are very high.

It has high wear resistance, corrosion resistance and erosion resistance. It also has good thermal insulation, small thermal expansion, high mechanical strength, low starting load, less ash jamming and ash deposit, and long service life Advantage.The solid valve body design can avoid valve body perforation and leakage caused by high-speed medium erosion.

Molding process Main chemical components of alumina 95 ceramics
Isostatic pressing Zr02:94.6%   Y203:4.7-5%  R0:0.4-0.7%
Performance parameters of ceramics
Volume density g/cm3 Flexural strength (Mpa) Compressive strength (Mpa) Tensile strength (Mpa) Average linear expansion coefficient
6.02g/cm 998 2100 400 10.5×10/C
Supporting valve parameters
Main material QT450, WCB, CF8, CF3M, 2205
Nominal diameter DN50-DN1000
Applicable temperatur Tem:-29~+350℃
Operation mode Manual, electric, gearbox, pneumatic, manual pneumatic, hydraulic, electro-hydraulic, sprocket, lever
Applicable medium Pulp, sewage, coal slurry, ash, particles, dust, slag water mixture



Qualification certificate

Factory Views

Technical Specifications of Slurry Knife Gate Valve(One-piece body type)
Size Range DN 50~600mm  NPS 2”-24”(Large diameter on request)
Design Options 100% full-port opening;

One piece casting body type;

Abrasion resistant replaceable sleeves;

Drop-tight, bi-directional shut off;

Eliminates seat cavity which prevents slurry build up

Body Material Ductile iron GGG40/GGG50
Knife Material SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 etc.
Seat Material Nature Rubber:70°C   (other materials on request)
Applicable Standards Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, AS2129 Table “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

1. Operatio

n

Options

Hand wheel/Bevel Gear/Chain wheel

Pneumatic/Electric/Hydraulic actuator

Applications Mining/Pulp & Paper / Waste Water treatment/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
